4.2 Compute Engine Layer

Level: 4 | Version: v1.1 | Author: Meptrasoft

Overview

The Compute Engine is the part of the database system responsible for processing SQL queries.

When a SQL query arrives, the database must:

Understand the query.
Check whether it is valid.
Decide how to execute it efficiently.
Execute the selected plan.
Return the result.

A simplified flow is:

SQL QUERY
   ↓
PARSER
   ↓
OPTIMIZER
   ↓
EXECUTOR
   ↓
RESULT

The Compute Engine turns a SQL request into an execution plan and runs that plan to produce a result.

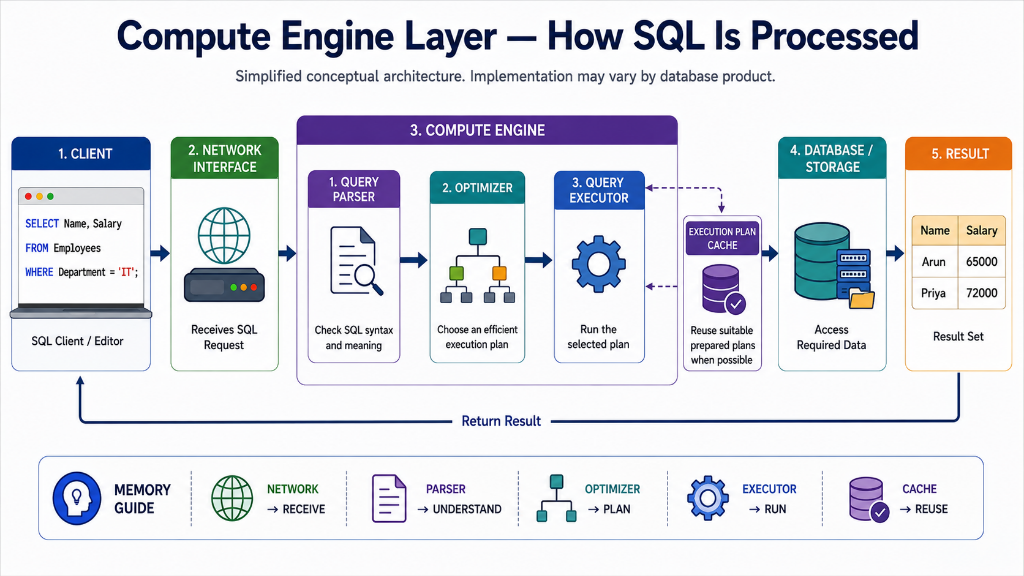

Compute Engine Layer — How SQL Is Processed: Client, Network Interface, Compute Engine (Parser, Optimizer, Executor, Plan Cache), Database/Storage, Result — Figure 1: The Compute Engine processes SQL through parsing, optimization, and execution before the final result is returned.

Network Interface — Communication Gateway

The Network Interface is the communication entry point between the client and the database system.

It receives SQL requests, manages communication/session-related work, and sends results back to the client.

For example:

SQL Client
    ↓
Network Interface
    ↓
Database Engine

It acts as the path through which requests and responses travel.

Network Interface = Communication between the client and database system.

Query Parser

The Query Parser examines the SQL statement before it can be executed.

Two important checks are:

1. Syntactic Analysis

The parser checks whether the SQL follows the required grammar and structure.

For example:

SELECT Name
FROM Employees;

has valid SQL structure.

But:

SELEC Name
FROM Employees;

contains a syntax error.

2. Semantic Analysis

The database then checks whether the query makes sense in the current database context.

For example:

SELECT EmployeeName
FROM Employees;

If EmployeeName does not exist in the table, the query cannot be executed correctly.

Other checks can include:

Does the referenced table exist?
Does the referenced column exist?
Is the requested operation allowed?

Parser = Check whether the SQL is correctly written and meaningful for the database.

Optimizer

After the query has been parsed, the Optimizer determines how the database should execute it.

A query can often be executed in more than one way.

For example, the database may choose between:

Full Table Scan
       OR
Index-Based Access

The optimizer considers available information such as:

Indexes
Table statistics
Estimated number of rows
Possible join methods
Available access paths

It then selects an execution plan based on estimated cost.

Optimizer = Choose an efficient way to execute the query.

Query Executor

The Query Executor runs the execution plan selected by the optimizer.

It may perform operations such as:

Reading data
Filtering rows
Joining tables
Sorting data
Calculating values

For example:

EXECUTION PLAN
      ↓
READ DATA
      ↓
FILTER
      ↓
PRODUCE RESULT

The executor works with the database's data-access and storage components to obtain the required data.

Executor = Execute the selected plan and produce the result.

Execution Plan Cache

Database systems may keep previously prepared execution plans in memory or other internal caches.

When a suitable cached plan can be reused, the database may avoid repeating some planning work.

A simplified idea is:

SQL QUERY
    ↓
PLAN CACHE
    ↓
PLAN AVAILABLE?
   ↙      ↘
 YES       NO
  ↓         ↓
REUSE     CREATE PLAN

Plan caching can reduce repeated parsing/planning overhead in appropriate workloads.

Execution Plan Cache = Reuse suitable previously prepared plans when possible.

Note: Exact plan-cache behavior varies between database products and configurations.

Complete Compute Engine Flow

Consider this query:

SELECT Name, Salary
FROM Employees
WHERE Department = 'IT';

The simplified processing flow is:

1. CLIENT SENDS SQL
          ↓
2. NETWORK INTERFACE RECEIVES IT
          ↓
3. PARSER CHECKS THE QUERY
          ↓
4. OPTIMIZER CHOOSES A PLAN
          ↓
5. EXECUTOR RUNS THE PLAN
          ↓
6. DATA IS ACCESSED
          ↓
7. RESULT IS RETURNED

This is the main idea students should remember.

A Simple Real-World Example

Imagine an employee application asking:

“Show the names and salaries of employees in the IT department.”

The application sends:

SELECT Name, Salary
FROM Employees
WHERE Department = 'IT';

The database roughly performs:

Request
  ↓
Parse
  ↓
Optimize
  ↓
Execute
  ↓
Return Result

The user does not need to know whether the database used an index, a table scan, or another access strategy.

The database chooses the execution approach internally.

How the Components Work Together

Component	Main Responsibility
Network Interface	Receives requests and returns responses
Query Parser	Checks and interprets SQL
Optimizer	Chooses an efficient execution plan
Query Executor	Runs the execution plan
Execution Plan Cache	Reuses suitable prepared plans when possible

Memory Trick

NETWORK   → RECEIVE
PARSER    → UNDERSTAND
OPTIMIZER → PLAN
EXECUTOR  → RUN
CACHE     → REUSE

Why the Compute Engine Matters

The Compute Engine is important because a database may receive thousands or millions of SQL requests.

Efficient query processing can reduce:

Unnecessary data access
CPU work
Memory usage
Query response time

This is why concepts such as indexes, execution plans, joins, statistics, and query optimization become important when studying database performance.

Common Beginner Mistakes

✗ Mistake	✓ Correct Understanding
The parser executes the query	The parser checks and interprets the query; the executor runs the plan
The optimizer retrieves the final rows	The optimizer selects an execution strategy
The executor decides the best plan	The optimizer chooses the plan; the executor runs it
Every query must read directly from disk	Data may already be available through memory/cache
Every database has exactly the same Compute Engine design	Internal implementation differs between database products
A cached plan is always reused	Reuse depends on the database system, query, configuration, and whether a suitable plan is available
A faster-looking plan is always faster	The optimizer relies on estimates and database statistics; actual performance depends on the workload and environment

Placement Quick Points

NETWORK INTERFACE
→ RECEIVES SQL REQUEST

PARSER
→ CHECKS / INTERPRETS SQL

OPTIMIZER
→ CHOOSES EXECUTION PLAN

EXECUTOR
→ RUNS EXECUTION PLAN

PLAN CACHE
→ REUSES SUITABLE PLANS WHEN POSSIBLE

The Compute Engine is the query-processing part of the database system.
The Network Interface handles communication with clients.
The Parser checks SQL syntax and meaning.
The Optimizer selects an execution strategy.
The Executor runs the selected execution plan.
Plan caching can reduce repeated planning work when a suitable plan can be reused.
Exact implementation details vary across database products.

Interview Questions

What is the Compute Engine?

The Compute Engine is the query-processing layer responsible for parsing SQL, selecting an execution strategy, and executing the query.

What does the Query Parser do?

It checks the SQL statement's syntax and interprets it in the context of the database, including references to database objects and applicable permissions or rules.

What is the role of the Query Optimizer?

The optimizer evaluates possible execution strategies and chooses an execution plan based on estimated cost and available information.

What does the Query Executor do?

The executor runs the selected execution plan and performs the operations needed to produce the result.

What is an execution plan?

An execution plan is the database's selected strategy for executing a SQL query.

What is an execution plan cache?

It is an internal mechanism that can store prepared execution plans so suitable plans may be reused instead of repeating some planning work.

What is the difference between the optimizer and executor?

Optimizer → Decides HOW to execute
Executor  → Executes that decision

Why is query optimization important?

It can reduce unnecessary data access and computational work, which can improve query performance.

Does every database have the same Compute Engine architecture?

No. Database products use different internal architectures and terminology, although the general concepts of parsing, planning/optimization, and execution are common.

Practice & Hands-On Exercises

Beginner Practice

What is the purpose of the Compute Engine?
What does the Query Parser do?
What does the Optimizer do?
What does the Query Executor do?
What is an execution plan?

Think and Answer

Why might a database choose an index instead of scanning an entire table?
Why is the optimizer important when a query can be executed in multiple ways?
Why can caching improve repeated query performance?
What is the difference between parsing, optimizing, and executing?

Query Flow Practice

For:

SELECT Name
FROM Employees
WHERE Department = 'IT';

Which component checks the SQL?
Which component chooses the execution plan?
Which component runs the plan?
Where might the required data be obtained from?
What is returned to the client?

💡 Tip: Test your queries using the in-browser interactive runner above.

Key Takeaway

SQL QUERY
    ↓
NETWORK
    ↓
PARSER
    ↓
OPTIMIZER
    ↓
EXECUTOR
    ↓
DATA ACCESS
    ↓
RESULT

The Compute Engine processes SQL by parsing the query, selecting an execution plan, and executing that plan to produce the required result.

End of Compute Engine Layer
